Process flow:

Put the product in manually -- pressurize the spray air pump -- concentrate 3 channels of 0.15um filtration -- clean the product -- blow dry the product -- remove the product manually.

Field of Application:

Ptb-800g pneumatic misprint board cleaning machine is an energy saving, environmental protection, batch cleaning integrated comprehensive high-end cleaning machine, can automatically complete the cleaning, air drying functions.

Mainly used for military, aviation, aerospace electronics, medical, automotive new energy, automotive and other coated products and high-end precision products cleaning a variety of small batch PCB misprinting board cleaning.

Equipment features:

? Automatic cleaning mode: fully pneumatic operation, the workpiece is placed in the cleaning basket spray system high-pressure rotating spray, can make PCBA full range of automatic cleaning, air drying process;

? The visual nozzle pressure can be adjusted: it solves the problem of collision and splashing of small size workpiece under high pressure spray during cleaning;

? Comprehensive cleaning system: compatible with running water washing or chemical cleaning for SMT; Clean organic and inorganic pollutants such as rosin, water-soluble flux, no-cleaning flux/solder paste on the surface of THT PCBA after welding thoroughly and effectively;

? Body material: 304 stainless steel body, acid, alkaline and other cleaning fluid resistance;

? Cleaning the built-in filter device can achieve solvent recycling and reduce solvent consumption.

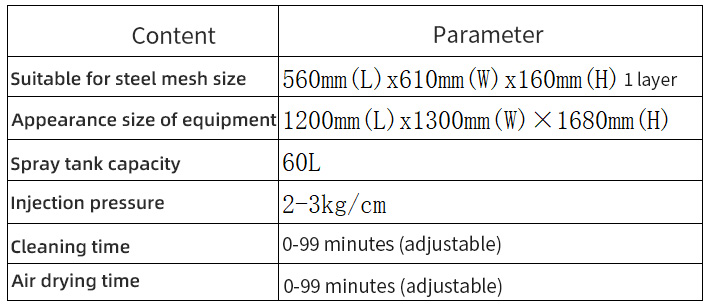

Equipment parameters:
